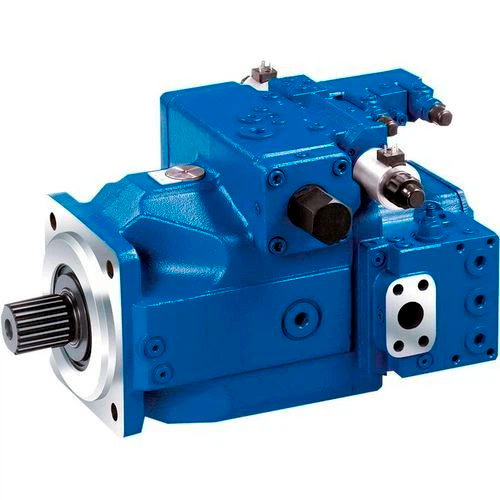

Heavy duty axial piston pump, high rigid shell and integral swing swash plate, designed for hydrostatic transmission in closed type, with flow rate proportional to transmission speed and displacement, used for high reliability and heavy load closed hydraulic equipment;
Rated pressure: 35MPa;
Control forms: constant pressure (DR), constant power (lr2g), manual (MA), proportional (HS4), servo (HS), flow control (FR), pressure and flow control (DFR), hyperbolic power (LR2), hydraulic flow control (eo1 / EO2), etc;
Product features:
Heavy duty axial piston pump, high rigid shell and integral swing swash plate, designed for hydrostatic transmission in closed type, with flow rate proportional to transmission speed and displacement, used for high reliability and heavy load closed hydraulic equipment;
The hydraulic control proportional pump, with two-way displacement and stepless hydraulic control, is suitable for occasions requiring explosion-proof and not suitable for electronic control;
Through shaft transmission of 100% torque, series pump combination, higher power / weight ratio;
The maximum displacement limit is set at 50% Vmax ~ Vmax;
The visual swing angle indicator is more convenient to judge the working state of the pump;
Adapt to high reliability, high pressure and long life equipment.
Heavy duty axial piston pump, high rigid shell and integral swing swash plate, designed for hydrostatic transmission in closed type, with flow rate proportional to transmission speed and displacement, used for high reliability and heavy load closed hydraulic equipment;
Rated pressure: 35MPa;
Control forms: constant pressure (DR), constant power (lr2g), manual (MA), proportional (HS4), servo (HS), flow control (FR), pressure and flow control (DFR), hyperbolic power (LR2), hydraulic flow control (eo1 / EO2), etc;
Product features:
Heavy duty axial piston pump, high rigid shell and integral swing swash plate, designed for hydrostatic transmission in closed type, with flow rate proportional to transmission speed and displacement, used for high reliability and heavy load closed hydraulic equipment;
The hydraulic control proportional pump, with two-way displacement and stepless hydraulic control, is suitable for occasions requiring explosion-proof and not suitable for electronic control;
Through shaft transmission of 100% torque, series pump combination, higher power / weight ratio;
The maximum displacement limit is set at 50% Vmax ~ Vmax;
The visual swing angle indicator is more convenient to judge the working state of the pump;
Adapt to high reliability, high pressure and long life equipment.
